Introduction
The Motorized Filter Wheel accessory is used with interference filters (not supplied) to select some specific wavelength ranges from a white light or to narrow the emission band of a color LEDs. The filter wheel can be used with neutral density (ND) filters to attenuate LED light intensity to achieve wide dynamic range of LED illumination.
Prizmatix Motorized Filter Wheel holding up to five filters. The device power and control realized via USB cable without additional power adaptor.
The Motorized Filter wheel is especially useful with Prizmatix Ultra High Power UHP-T-White LED for selection of several specific wavelengths. The Filter Wheel shall be connected to collimated LED for correct wavelength selection by the interference filters.
Key Features
- Accommodates up to 5 standard ø1" (25.4mm) filters.
- Fits filters up to 0.25" (6.35mm) thick.
- Threaded SM1 Ports (1.035"-40TPI) on front and rear aperture.
- Operates from 5V USB power.
- Can be operated with Prizmatix UHP-T-White LED from LED control software.
Applications
- UHP-T-DI White LED light filtering.
- Optogenetics in-vitro activation and silencing.
- Spectroscopy.
- Fluorescence microscopy.
- Whole body imaging.
- Camera / Detector calibration.
Specifications
| Filters size (diameter / thickness) | ø1" (25.4mm) / up to 0.25” (6.35mm) |
| Number of filter positions | 5 |
| Adjacent filter change time | ~1 sec |
| Adaptor for optional optical fiber | Prizmatix FCA-SMA / FCA-FC |
| Adaptor for Light Guide | Prizmatix LLG-A |
| Adaptors for microscope epi-fluorescence illumination port |
Olympus, Nikon, Zeiss or Leica |
| Connection to Prizmatix LED heads SM1 Ports (1.035"-40TPI) thread | SM1 Ports (1.035"-40TPI) thread |
| Connection to other systems | SM1 Ports (1.035"-40TPI) thread |

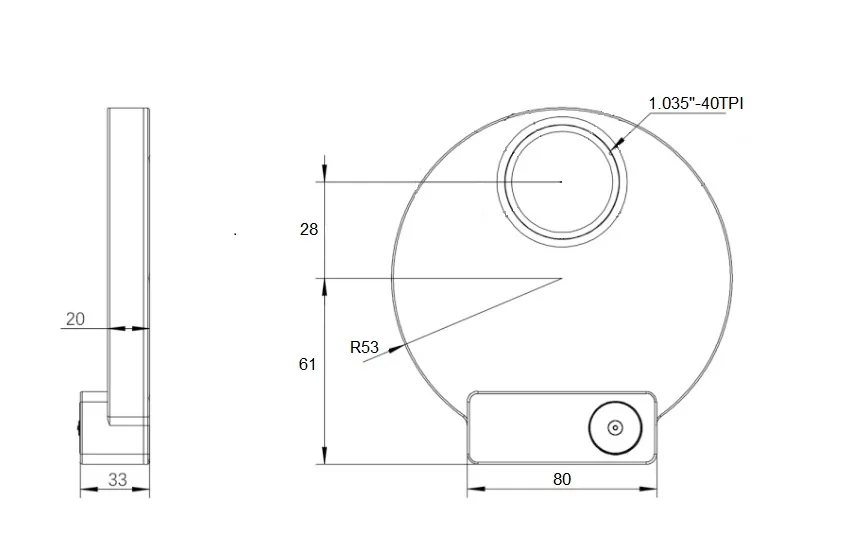

Mechanical Drawings
