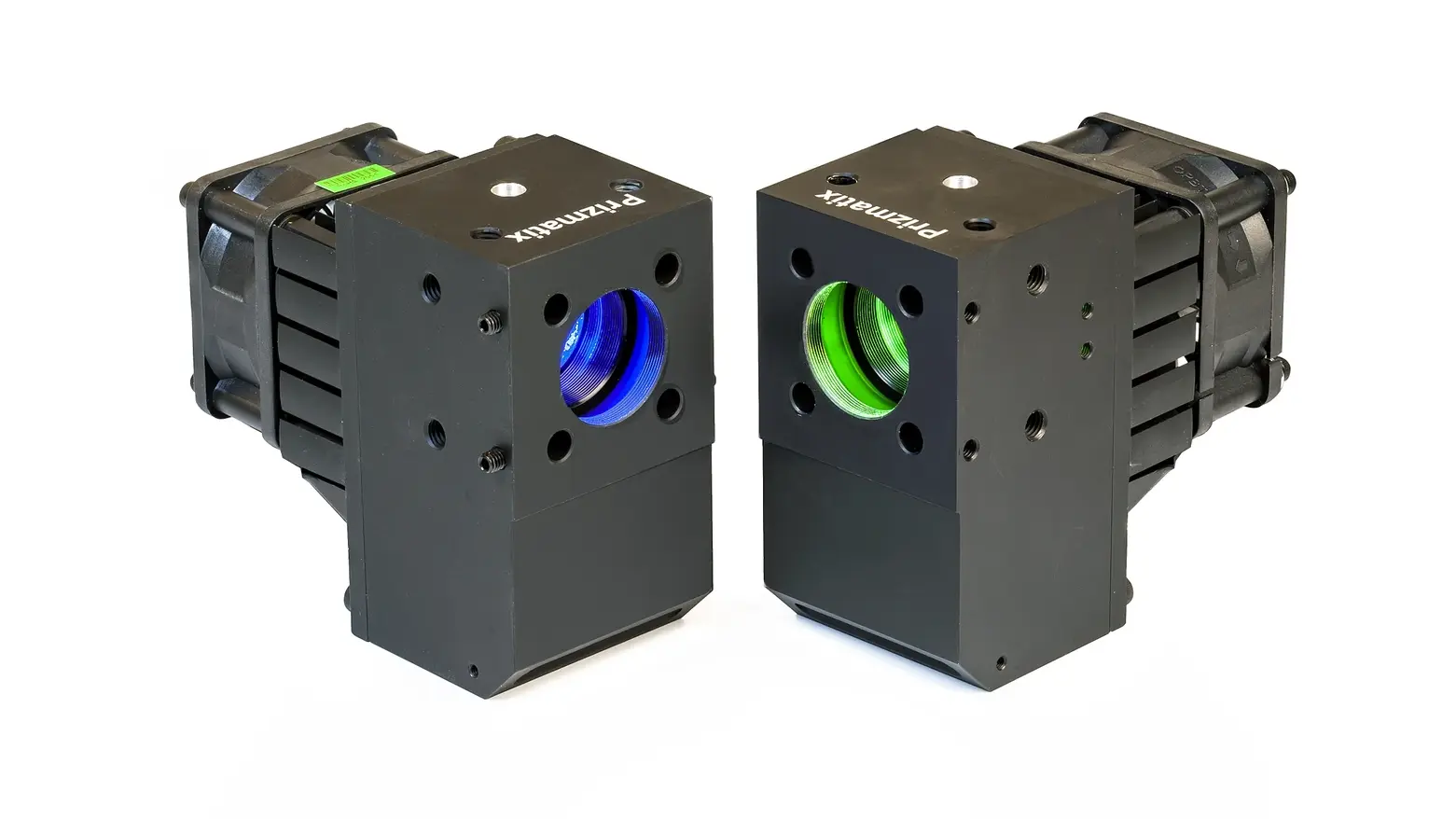

Prizmatix's UHP-T-LED series provides a powerful and versatile light source solution for original equipment manufacturers (OEMs). These compact yet robust collimated LEDs deliver exceptional performance across a range of demanding applications.
Key Advantages for OEM:
Exceptional Power and Brightness: Achieve high illumination levels for optimal system performance.
Wide Wavelength Selection: Choose from a broad spectrum of wavelengths to meet your specific needs.See the wavelength list and power output table on the main UHP-T-LED product page.
Multi-wavelength LED Light Sources / Modular Design: The UHP-T-LED light source's modular design facilitates easy and robust connection of multiple LED heads. Using Prizmatix Beam combiners, modules, and other accessories enables the creation of customized multi-wavelength LED light sources.
Flexible Control Options:
- Integrate seamlessly with your system using TTL, Analog, or USB control.
- Programmer API with software examples available without charge.
Mechanical Interfaces:
- Standardized mounting holes and interfaces for easy integration.
- Output aperture with standard SM1 thread for compatibility with various optical systems.
- Prizmatix connection pins for easy system expansion.
- 3D CAD models in STEP format available upon request for simplified design.
Reduced EMI/RFI Accelerates OEM Compliance
Prizmatix UHP-T-LEDs feature a unique design with the high-current LED driver circuit integrated within the metal-shielded LED head. This minimizes electromagnetic interference (EMI/RFI), allowing for placement near sensitive instrumentation. This design significantly streamlines electromagnetic compatibility (EMC) and electrical safety testing, accelerating your time to market.
Unmatched Stability and Lifetime:
- Consistent output ensures reliable and repeatable results.
Regulatory Compliance: All required documentation is readily available to help you smoothly pass CE and FDA Medical Device regulations.
Ideal for a Wide Range of Applications:
- Medical Analyzers.
- Machine Vision.
- Wafer Inspection.
- Multiwavelength Imaging.
Prizmatix UHP-T-LEDs offer a robust and reliable foundation for your OEM system, enabling you to deliver innovative and high-performance solutions to your customers.
Below you can find the detailed description of dedicated OEM LED controllers for UHP-T-LED.
Please review the full description of UHP-T-LED on this main product page.

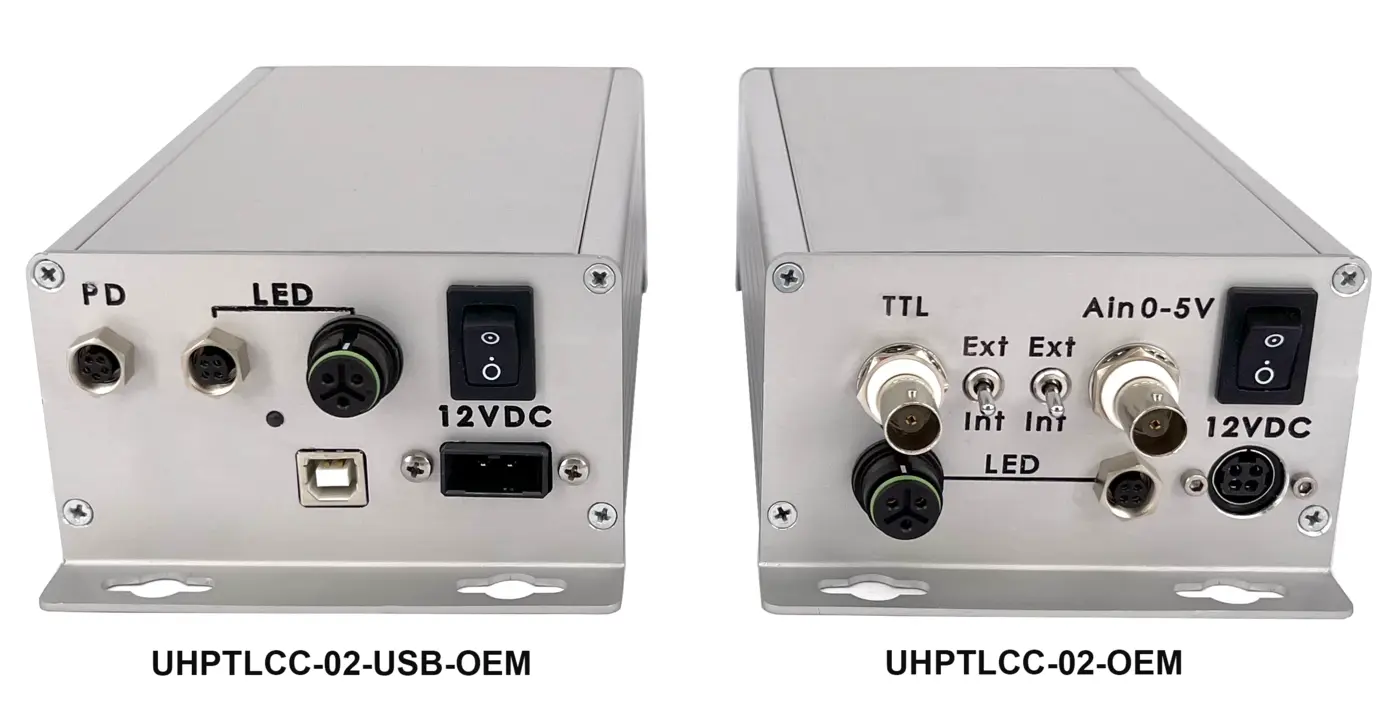

.UHPTLCC-02 OEM Controllers:
Ruggedized and Simplified Solutions for OEM Equipment
These controllers are designed specifically for original equipment manufacturers, offering a robust and simplified solution for controlling Prizmatix Ultra-High-Power collimated LEDs. The OEM controllers are compatible with any of the five product lines of Prizmatix Ultra-High-Power collimated LEDs: UHP-T-EP, UHP-T-SR, UHP-T-DI, UHP-T-LA and UHP-T-MP.
Benefits for OEMs:
Reduced Integration Effort: Streamlined integration process saves time and resources. Flanges with mounting hols for convenient mounting to the equipment chassis. Programmers API with software examples (C, C++, C#, LabVIEW, LabWindows CVI, MATLAB, Phyton, Google Chrome WebUSB)
Improved Reliability: Rugged construction without manual control interfaces.
Enhanced Control: Precise control over LED parameters optimizes system performance.
- USB computer control of output power level and TTL input for fast On/Off switching / strobing.
- Analog Input for power control and TTL input for fast On/Off switching / strobing.
- TTL and Analog inputs are opto-isolated.
| UHPTLCC-02-OEM | UHPTLCC-02-USB-OEM | |
|---|---|---|
| Power Control: | Analog Input for power control. | Digital LED controller enabling control from computer via USB. |
| Pulse / Strobing | TTL input for fast On/Off switching / strobing. | TTL input for fast On/Off switching / strobing. |
| LED Power Monitoring: | N.A. | Power monitoring by optional digital photodiode assembled on the LED head. |
| LLED Power Stabilization: | N.A. | Digital controller with power stabilization by photodiode and PID algorithm. |
| Computer Control | Can be accomplished by A/D cards or FPGA. |
Programmers API with software examples (C, C++, C#, LabVIEW, LabWindows CVI, MATLAB, Phyton, Google Chrome WebUSB). All the above were tested on Windows - based PCs. Phyton was tested on both Windows and on Raspberry Pi. WebUSB was tested on Windows and MAC computers running Google Chrome. |
Any UHP-T series LEDs can be used with any UHPTLCC-02 series controller. Advanced high current driver is embedded within the shielded LED head, not in the controller box. The UHPTLCC-02 controller contains all control interfaces and functions. This split arrangement allows direct mounting of LEDs on sensitive equipment while eliminating virtually all RFI / EMI interference common in high current light sources. All BNC connectors for TTL and Analog inputs are Optically Isolated to prevent ground loops.
General Specifications
| Operation temperature range | °C | 10-35 |
| Storage temperature range | °C | -65 |
| Operative relative humidity (Non-condensing) | % | <90 |
| UHPTLCC-02 dimensions | See drawing below | |
| UHPTLCC-02 weight | g | 430 |
| Power Adaptor Dimensions (L x W x H) | mm | 167 x 67 x 35 |
| Power Adaptor Safety |
|
Drawings

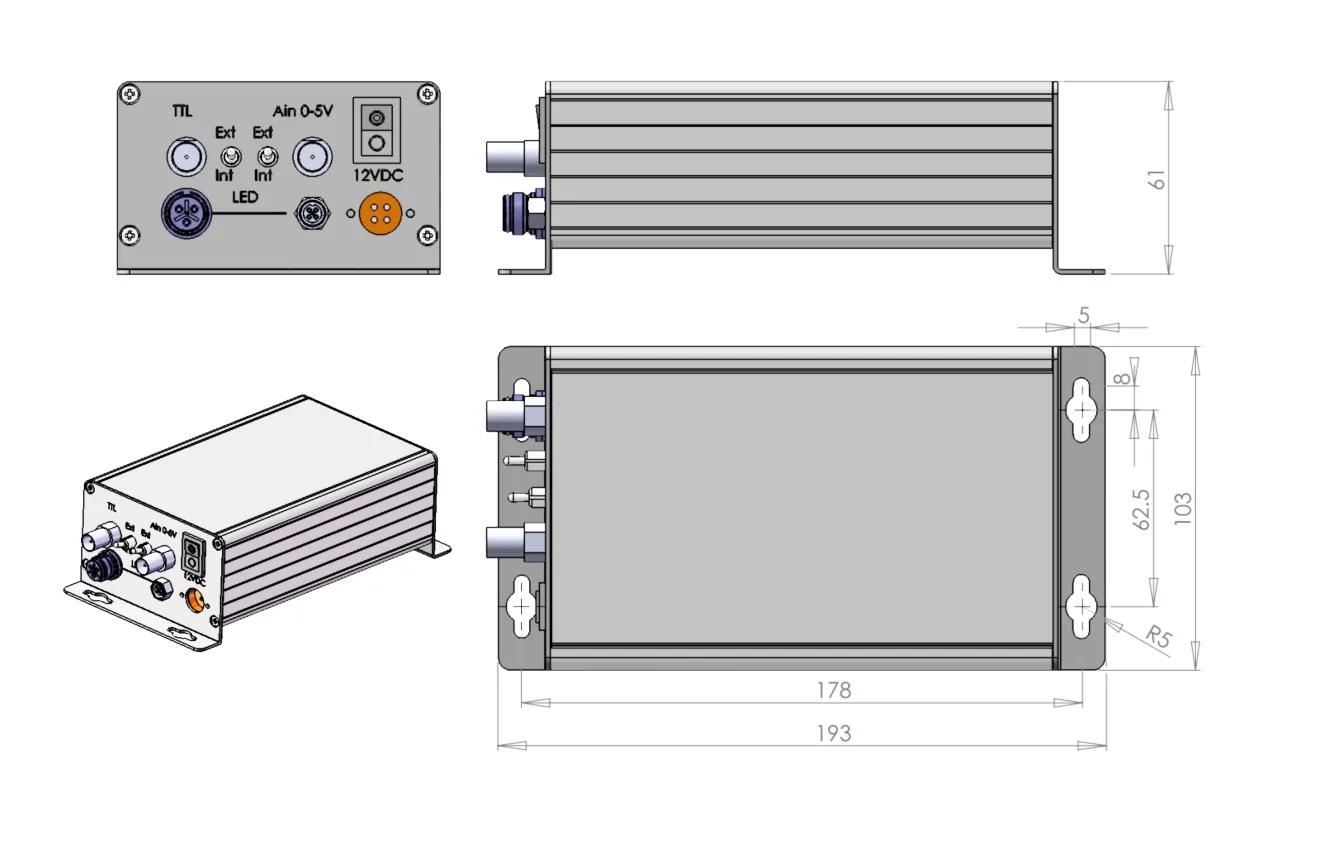

UHPTLCC-02-OEM Drawing:

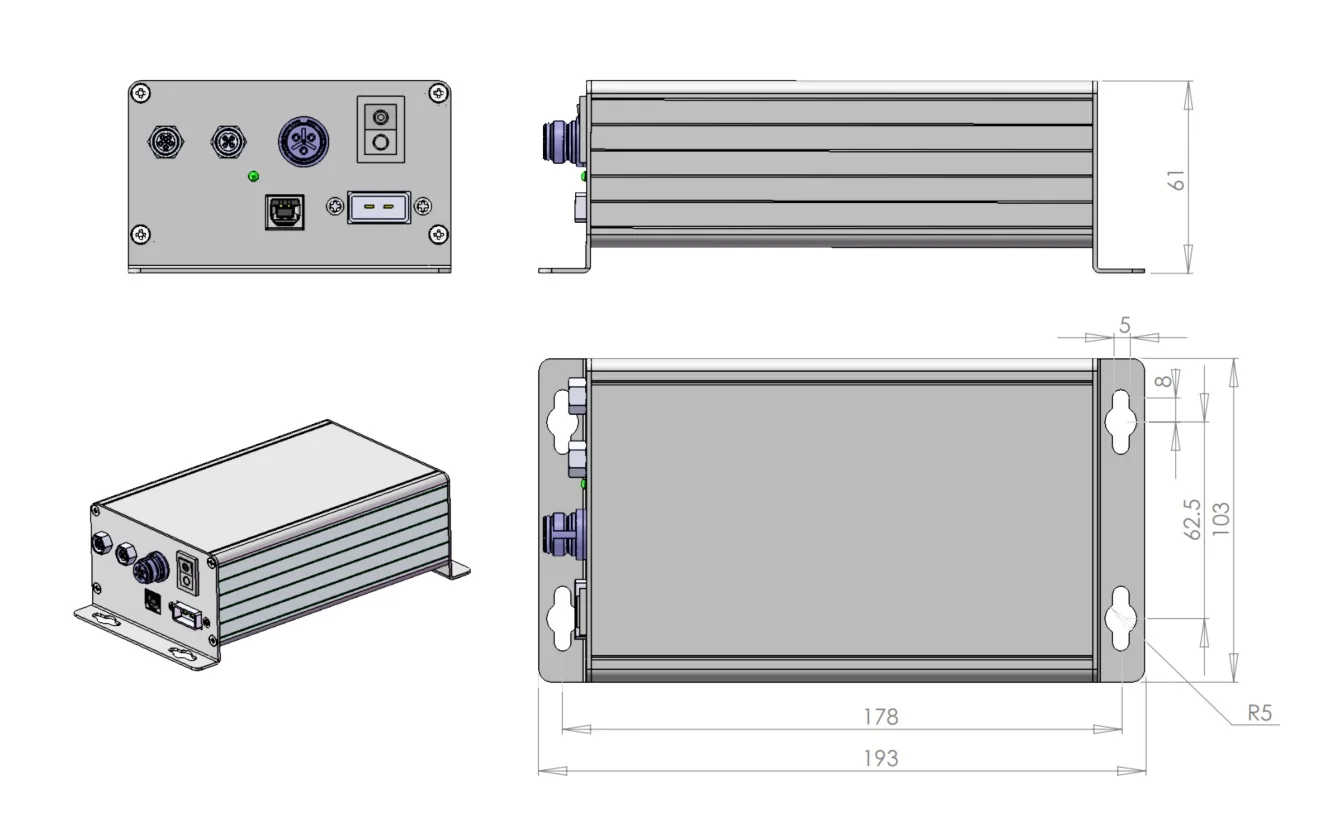

UHPTLCC-02-USB-OEM Drawing:
