Vacuum-FC-LED-White is a Ultra-Bright LED fiber coupled light source providing excellent illumination in places with limiting access like vacuum chamber lighting. The fiber from the device can be used for illumination through one of viewports, in such case a half inch collimator attached to distal end of fiber maybe useful. Other option is to connect the fiber to a fiber optic feed through port and use vacuum compatible optical fiber inside the vacuum chamber. Vacuum fiber coupled white LED utilizes the latest automotive LED technology to create high brightness fiber coupled light source suitable for use with variety of high NA optical fibers.
Key Features
- High optical power (e.g. >500mW from glass fiber 1000um, NA=0.5 fiber)
- Precisely adjustable power by 10 turns potentiometer
- Opto-isolated Analog and TTL inputs to eliminate ground-loops
- Analog input (0-5V) for power control
- USB control (optional)
- Instant warm up time

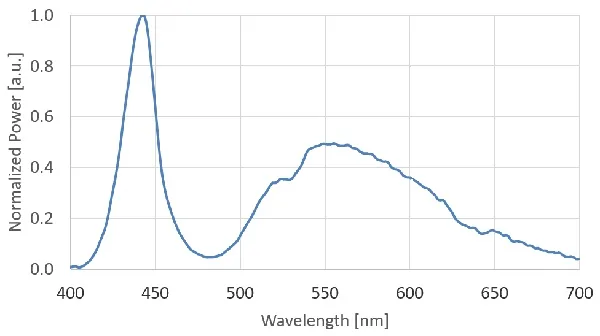

Optical Specifications
| Fiber | Output Power |
| Optical Power from polymer fiber 1000um NA0.5 fiber (1m) | >330mW |
| Optical Power from polymer fiber 1000um NA0.63 fiber (1m) | >380mW |
| Optical Power from polymer fiber 1500um NA0.63 fiber (1m) | >410mW |
| Optical Power from glass fiber (Thorlabs P/N: M59L01) 1000um NA0.5 fiber (1m) | >500mW |
Electrical Specifications
| Digital modulation inputs | Optically isolated TTL | |
| Connector for TTL and Analog input | BNC | |
| Digital modulation frequency | Hz | DC-30000 |
| Rise / Fall time (10% - 90%) | μs | <10 |
| Analog input voltage range | V | 0-5 |
| Input Voltage | V | 12 |
| Power Adaptor Input | 85-264 VAC, 47-63Hz,1.5A |
General Specifications
| Operation temperature range | °C | 10-35 |
| Storage Temperature range | °C | -10-55 |
| Operating relative humidity Non condensing |
% | <90 |
| Dimensions (L x W x H) | mm | 197 x 174 x 80 |
| Weight | g | 750 |
| Power Adaptor Dimensions (Lx W x H) |
mm | 125 x 50 x 31.5 |
| Power Adaptor Weight | g | 300 |
| Power Adaptor Safety |
|
|
| Fan Noise | dBA | 28.4 |
Optional Accessories
Fiber Patch Cords
Prizmatix provides big range of high NA optical fibers excellent for LED light transmission.
These high NA fibers made of silica, glass or polymer can be configured to fit any research set-up with various combinations of connectors, ferrules, core diameters and lengths.
See more info here ...
Collimators
Prizmatix provides 1 inch and 0.5 inch collimators especially designed for high NA fibers.
See more info here ...
Focuser
In some cases, a predefined illumination spot size is required. In such cases a focuser lens shall be assembled on top of collimator. Prizmatix offers Ø1 inch Focuser, to be used with FCM1-0.X fiber
collimators
Ordering Information
| Item Description | P/N |
|
Fiber coupled White LED Source Fiber coupled White LED for vacuum chamberPower adaptor and power cord included Optical fiber does not included |
Vacuum-FC-LED-White |
|
Fiber High NA Polymer Optical Fiber (POF)Core: 1000um / 1500um /2000 um NA: 0.5 or NA: 0.63. Length: 0.2m - 2m Connectors: SMA / FC |
Fiber |
|
½ Inch High NA Collimator See more ... Ø0.5 inch Fiber collimator for High NA fibers up to NA=0.53Accepts High NA Polymer Optical Fiber (POF) with core diameter of 500um / 1000um / 1500um /2000 um NA = 0.5 |
FCM05-0.5 |
|
One Inch High NA Collimator See more ... Ø1 inch Fiber collimator for High NA fibers up to NA=0.53Accepts High NA Polymer Optical Fiber (POF) with core diameter of 1000um / 1500um /2000 um, NA = 0.5 |
FCM1-0.5 |
|
One Inch 0.63 NA Collimator See more ... Ø1 inch Fiber collimator for High NA fibers up to NA=0.63Accepts High NA Polymer Optical Fiber (POF) with core diameter of 500um / 1000um / 1500um /2000 um NA = 0.63 |
FCM1-0.6 |
|
Focuser Ø1 inch Focuser to be used with FCM1-0.X fiber collimator |
FOC1 |
