Introduction
The FC-BBW series comprises scientific light sources designed for Visible light spectroscopy applications. These fiber-coupled LED sources are distinguished by their wideband white light emission, featuring unique, nearly flat spectra. This characteristic makes them exceptionally well-suited for absorbance, transmission, and reflectance spectroscopy. They are best utilized in conjunction with portable spectrometers, which are readily available on the market.
FC-BBW Fiber Coupled LED Brochure
The FC-BBW50 model delivers a broad, nearly flat emission spectrum spanning from 410nm to 670nm. This range enables precise analysis within this specific spectral region. The FC-BBW50-Plus model surpasses this capability by offering an even wider emission spectrum, covering an impressive range of 390nm to 750nm. Additionally, the FC-BBW27 model provides a warm white spectrum similar to that of a tungsten light source. This diverse range of products ensures that users can choose the model that best suits their specific needs.
These self-contained light sources come equipped with all the essential driver electronics and thermal management systems. Consequently, there is no need for an external controller to operate the light source. This convenient design simplifies the setup process for users and enhances overall usability.
The FC-BBW models with their wideband white light emission, fiber-coupled LED output, and self-contained design, offer remarkable flexibility, accuracy, and ease of use across a diverse range of spectroscopy applications.
Key Features:
- Ideal for visible spectroscopy applications with miniature fiber-optics spectroscopes
- FC-BBW27 - Emission spectrum similar to a tungsten light source
- FC-BBW50 - Almost flat white spectrum from ~410 to 670nm
- TFC-BBW50-Plus - Extended broadband while spectrum from ~390 to 750 nm
- Self-contained CW fiber coupled white light sources
- Long Life LED sources
- Small footprint
Optical Specifications
| Product P/N | Total Power [mW] | Normalized Value [a.u.] | Bandwidth Power[mW] |
|
|
|
Typical optical power from distal end of 1m fiber:
| Fiber P/N | Fiber Core [µm] |
Fiber NA | Output Power FC-BBW27 2700K [mW] | Output Power FC-BBW50 5000K [mW] |
Output Power FC-BBW50-Plus 5000K [mW] |
| M142L01 | 400 | 0.22 | 1.59 | 1.55 | 1.2 |
| M28L01 | 400 | 0.39 | 4.0 | 3.9 | 3.1 |
| M114L01 | 600 | 0.22 | 3.7 | 3.4 | 3.0 |
| M29L01 | 600 | 0.39 | 9.0 | 8.2 | 7.1 |
| M59L01 | 1000 | 0.5 | 33 | 32 | 25.2 |
Electrical Specifications
| Input Voltage | Vdc | 12 |
| Power Adaptor Input | 100-240 VAC, 50/60Hz, 0.7A |
General Specifications
| Operation temperature range | °C | 10-35 |
| Storage Temperature range | °C | -10-55 |
| Operating relative humidity (Non condensing) |
% | <90 |
| Dimensions (L x W x H) | See drawing below | |
| Head weight | g | 700 |
| Power Adaptor Dimensions (Lx W x H) |
mm | 93 x 54 x 36 |
| Power Adaptor Weight | g | 209 |
| Power Adaptor Safety |
|

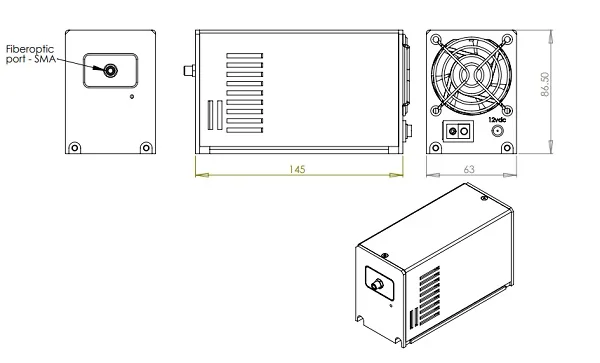

Mechanical Drawings
FC-BBW27/ FC-BBW50
FC-BBW50-Plus
* Specifications subject to changes without notice
