Engineered for scaling Optogenetics experiments, the Optogenetics-LED-Dual light source features two independent fiber-coupled LED channels each equipped with independent power and switching control.

This versatile system accommodates two LEDs with a wavelength combination that can suit widely used Stimulation or Silencing Optogenetics opsins, such as Channelrhodopsin ChR2, Halorhodopsin NpHR, eNpHR3.0, Archaerhodopsin Arch, ArchT etc. The available wavelengths for each channel span the Violet, Blue, Green, Yellow, Red, Deep-Red, and Near-IR with the flexibility to customize any wavelength combination upon request.

Each channel in the Optogenetics-LED-Dual system allows for bilateral activation/inhibition, ensuring substantial cost savings without compromising power at the implant tip.

  Optogenetics-Toolbox-in-vivo

  Optogenetics-LED-Dual

  Optogenetics-LED-User-Manual

Optogenetics-LED-Dual-Blue-Green
Click to enlarge


 Key Features

  • High Power density (at Blue >380 mW/mm²) at implant tip following Rotary-Joint and all fiber connections.
  • Unique large and powerful LEDs enable bilateral illumination with single LED and Rotary-Joint for significant cost saving and without compromising power at implant tip.
  • Extremely low torque LED-compatible Rotary-Joint suitable for even the smallest animals
  • Precisely adjustable power by 10 turns potentiometers (separately for each channel)
  • Opto-Isolated TTL Inputs for fast switching (separately for each channel)
  • Opto-Isolated Analog Inputs for external power control (separately for each channel)
  • Instant warm up time. Rise / Fall time <10 μs



Optogenetics Toolbox for Freely Moving Mammals Experiments

Prizmatix offers a wide range of standard and customized items comprising the Optogenetics Toolbox. The most useful items for optogenetics experiments  in freely  moving mammals are:

  1. Optogenetics-LED-Dual
  2. Extremely low friction Rotary-Joint
  3. Fiber Optics Cannulae
  4. Single or Dual Fiber for bilateral activation
  5. Fiber patch cord
  6. Pulser for generation of TTL pulse trains

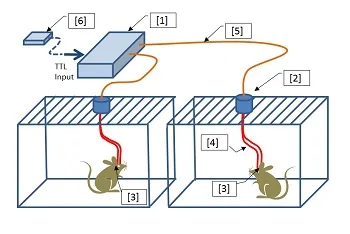

Optogenetics-LED-Dual-System
Click to enlarge

Common LED Colors:

Opsin LED Color Peak wavelength range (nm)
  UV- Violet 385 - 410
ChR2
Channelrhodopsin
Blue 450 - 465
Arch
Archaerhodopsin
Green 515 - 525
ArchT Green 515 - 525
C1V1 Green 515 - 525
NpHR
Halorhodopsin
Lime-Green 540- 600
eNpHR3.0 Orange-Red 600 - 630

Optical Specifications

LED specifications Units  Channel #1 LED
 Channel #2 LED
Peak wavelength range
Spectrum FWHM nm
Optical ouput power values from optical fiber connected directly to Optogenetics-LED.
Useful for in-vitro or fixed preparate applications:
Optical Power from 200μm NA0.66 fiber (1m) mW
Optical Power from 250μm NA0.66 fiber (1m) mW
Optical Power from 500μm NA0.63 fiber (1m) mW
Optical Power from 1000μm NA0.63 fiber (1m) mW
Optical output power values from cannula of full Optogenetics system comprising Optogenetics-LED, fiber patch cord, Rotary-Joint, Dual/Single fiber and cannula inplant:
Optical Power from 200μm cannula mW
Optical Power from 250μm cannula mW
Optical Power from 500μm cannula mW
Irradiance from 200μm cannula mW/mm²
 Opsin     #1
Opsin     #2
 Output Data   λ = 314 Channel #1 = 0.001 Channel #2 = 0.000

Wavelength (nm)



 Electrical Specifications

Digital modulation input   Optically isolated TTL
Connector for TTL and Analog input   BNC
Digital modulation frequency Hz DC-30000
Rise / Fall time (10% - 90%) µs <10
Analog input voltage range V 0-5
Input Voltage V 12
Power Adaptor Input   85-264 VAC, 47-63Hz,1.5A


 General Specifications

Operation temperature range °C 10-35
Storage Temperature range °C -10-35
Operating relative humidity
Non condensing
% <90
Dimensions (L x W x H) mm 197 x 241 x 80
Weight g 750
Power Adaptor Dimensions
(L x W x H)
mm 125 x 50 x 31.5
Power Adaptor Weight g 270
Power Adaptor Safety
Fan Noise dBA 28.4
